RED-V RXV A740 R

RXV A740 R is the ultimate digital signage media player, designed to bring a world of online contents to your screens, such as Ultra High-Definition video playback and real-time streaming, remote management, local media playback capability via USB port and SD Cards, and audio streaming services.
Designed to be easy-to-use, RXV A740 R transforms your TV screens in a fully interactive marketing tool, without any technical skills. You just log in your RED-V dashboard by computer, smartphone or tablet to create your layout experience quick and easy, importing dynamic contents like social media, pictures, video, feed RSS, playlist and so on in just a few click.

ic_social Social media
ic_pictures Pictures
ic_video Video
ic_text Text
ic_rss Feed RSS
ic_music Music
ic_weather Meteo
ic_web Web
ic_youtube Youtube

Processor

Quad-Core Cortex A53 Processor(64-bit)

GPU

Penta Core Mali-450 GPU

Internal Storage

16GB eMMC 5.0 Storage(MLC)

Wireless Connectivity

802.11ac 2 X 2 MIMO Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.1

Operating System

Android™ 5.1.1 Lollipop

Video Output

HDMI®2.0, up to 4K @ 60Hz Supports HDMI-CEC

Audio Output

Via HDMI®2.0, 3.5mm stereo jack, optical SPDIF

Peripheral Interface

RJ-45 GIGABIT Ethernet – supports hotspot sharing via WiFi
Micro SD card reader
USB 2.0 port x 3, OTG port x 1 Kensington lock ready
Microphone Jack,Headphone Jack, IR receiver (remote included)

Power

DC 5V, 3A adapter included (CE, FCC certified)

Supported Video Format

DAT / MPEG / MPE / MPG / TS / TP / VOB / ISO / AVI / MP4 / MOV / 3GP / FLV / MKV / M2TS / MTS / M4V / WMV / ASF

Supported Audio Format

MP2 / MP3 / WMA / WAV / OGG / OGA / FLAC / ALAC / APE / AAC

RXV A740 R
MEDIA PLAYER

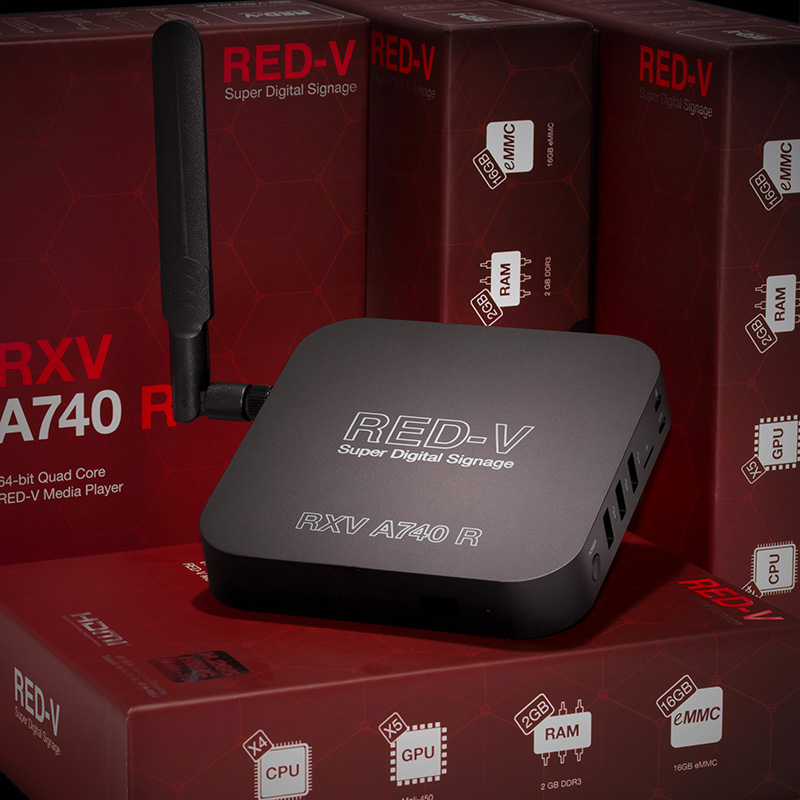

RXV A740 R packaging

It is a full featured server all included into a smart player box. You can customize your template and content with just the RED-V player connected to the TV/Monitor.
If you want to lean back on your sofa, connect your phone or tablet and just run your RED-V channel the way you like.

Android™ Lollipop

Operating system:
Android™ 5.1.1 Lollipop

4K

First media player to support 4K @ 60fps! Exceptional playout quality up to 10-bit colour format. No moving parts (fanless).

RED-V SOFTWARE

RED-V is a complete Digital Signage solution, from media player up to the CMS server, that is made possible by a tightly integrated suite of applications. On the media player side RED-V consists of a set of native Android apps, specifically designed and optimized for our media player hardware:


ic_list

RED-V Launcher

It is the first apps loaded when the media player starts, and enables the user to configure and manage all RED-V and system configurations (CMS server connection, Wi-Fi or ethernet network, date and time, etc.)

ic_list

RED-V Downloader

It’s a service that keeps the player always synchronized with the CMS server, sends reports, alarms and playout statistics. It also implement the embedded CMS Web Server used especially in RED-V ONE mode of operation (no external CMS server is needed in this case)

ic_list

RED-V Player

It's the main and most important app running on the media player, which renders and plays all the audiovisual contents on the screen as designed by the user. It takes advantage of all the hardware accelerated capabilities to provide an immersive experience to the intended audience. Besides videos and image playlists with animations, it supports: YouTube (videos, playlists and channels), Twitter, RSS news feeds, Web view with Javascript support, etc

ic_list

RED-V SERVER

It’s a powerful CMS and Digital Signage server, designed with ease-of-use in mind, that let’s you manage from a few media players from a single installation, to big installations with thousands of players around the world, possibly independently managed by different accounts with different users and contents.

As an alternative to RED-V ONE

ic_list

RED-V PROXY

For large and geographically sparse installations RED-V Proxy can help you reduce network traffic costs and speed up media player synchronization, by hosting and serving media contents in a distributed way, instead of using a single central server.

ic_list

RED-V ONE

It’s a small yet complete, CMS server pre-installed in the media player, just working out of the box. With it you have everything needed to manage a single RED-V player.

As an alternative to RED-V SERVER







The RED-V Central Server features mainly relates to contents, distribution architecture, channels and devices. As such, it can be referred to as a contents and Digital Signage management tool, designed as SaaS (Software as a Service). RED-V Central Server UI is an HTML5 Web App and works as fine on a desktop browser and on smartphone and tablet devices (this very much concern the “responsive” design of its UI). This stylish UI, designed with easy of use and simplicity in mind, helps you managing your RED-V Network of media players from your RED-V Central Server even from an iOS or Android smartphone while your RED-V Central Server runs on your premises.

FOCUSED SOLELY ON DELIVERING
AMAZING PLAYOUT QUALITY

RXV A740 R is an amazing media player with stunning Ultra High-Definition video playout, engineered to be durable and extremely power efficient. The pre-installed RED-V suite of apps make this media player a perfect solution for Digital Signage installations, from the smallest one with a single screen, up to the biggest with thousands of screens.

ic_media


Computing Power

RXV A740 R is based on 64-bit Quad-core ARM® Cortex™-A53 running at 2 GHz. The Penta-core ARM® Mali™-450 guarantee optimal graphics performances used to create smooth animations of images and texts, needed by a modern Digital Signage media player.

ic_easy


Easy-to-Use

RED-V is a smart Digital Signage solution that allows you to manage both small and large installations thanks to its intuitive set of apps and the CMS server. This solution is suitable for creating the most effective content for different situations, without specific technical skills. Easy steps to upload your files and create or change your screen layout and program as well as scheduling it, to provide your audiovisual message to the right audiences.
Enjoy full and easy control of your screens with RED-V Super Digital Signage.

ic_hd


Ultra High-Definition video

RXV A740 R can play 4K videos with an exceptional 60 fps and 10-bit colour, delivering ultra sharp and smooth imagery for a unique video experience. Thanks to HEVC / H.265 codec support, 4K video files can be highly compressed and reduced in size without sacrificing video quality. Reduced file size can help lowering the costs for your network traffic infrastructure, especially for big projects with many Internet connected players / screens.

ic_efficient


Energy Efficient

RXV A740 R, despite being so powerful, offers an exceptional energy efficiency, making it a perfect solution as a Digital Signage media player, that can be powered-on 24h a day, without any worries.
